Basic Info.
Product Description
MOQ:30pieces/Special discounted price for FCL order
/OEM & ODM are welcome/
1.Raw materisl-only100% virgin material
2.Use imported color concentrate,color can be last for long time,even outside
3.Good thickness tolerance,not less weight than ordered
4.Paper are imported from Malaysia,easily removed,and strong enough
5.No smell when laser cut or CNC cut
6.Dust-free workshops and advanced production technology
Sound insulation of this acrylic sheet can achieve 30 db(A). It can fully meet the requirements of the sound barrier, and has high transmittance, resistance to yellowing, and a good landscape effect. But the problem is: thicker plate prices are more expensive and impact resistance worse than the pc board. Sound barrier sheets are used in many domestic projects, with height 3.65 m, can reduce 6-7db. At present, mass production of transparent acrylic sheet of 12-20 mm thick has been realized in China. By means of reinforcement in the plate, the impact resistance is also improved. There are more and more countries use acrylic stiffener to build sound barrier.
| Material | 100% Virgin Mitsubishi Material |
| Thickness | 10-50mm |
| Color | transparent(clear) |
| Standard size | 2000*3000mm, 2000*2000mm, 1500*2000mm, 1000*2000mm, 2000*2500mm |
| Certificate | CE, SGS, DE, and ISO 9001 |
| OEM and ODM | changing on design , color , Size is acceptable. |
| MOQ | 30 pieces |
| Delivery | 10-25 days |
100% Virgin raw material
Top-grade JUMEI cast acrylic sheets made from only 100% virgin raw material.
UV coated
All JUMEI acrylic sheets are UV coated, guarantee sheets not yellow when using outside, can use outdoor for more10 years.
Best sufficient thickness
Best thickness tolerance and sufficient thickness.
Best Noise reduction mechanism
After testing,15 and 20 mm acrylic sheet, respectively 32 and 35 db noise reduction.
| Physical Property of Cast Acrylic sheet | |||
| | PROPERTY | UNIT | VALUE |
| MECHANICAL | Specific Gravity | - | 1.19-1.2 |
| Roswell Hardness | kg/cm 2 | M-100 | |
| Shear Strength | kg/cm 2 | 630 | |
| Flexural Strength | kg/cm 2 | 1050 | |
| Tensile Strength | kg/cm 2 | 760 | |
| Compressive Strength | kg/cm 2 | 1260 | |
| ELECTRICAL | Didlectic Strength | Kv/mm | 20 |
| Surface Resistivity | Ohm | > 10 16 | |
| OPTICAL | Light Transmittance | % | 93 |
| Refractive Index | - | | |
| THERMAL | Specific Heat | Cal/grºC | 0.35 |
| Coefficient of Thermal Cortductivily | Cal/xee/cm/ºC/cm | | |
| Hot Forming Temp | ºC | 140-180 | |
| Hot Defomation Temp | ºC | 100 | |
| Thermal Expansion Coefficient | Cmfcm/V | 6×10-5 | |
| MISCELLANEOUS | Water Absorption(24Hrs) | % | 0.3 |
| Teste | % | None | |
| Odor | | | |
* Q1: Are you a manufacturer or trading company?
A: We are a professional manufacturer with 15 years experience in this field.
* Q2: How can i get the sample?
A: Small samples available are free, just freight collect.
* Q3: How long can I expect to get the sample?
A: We can prepare samples within 3 days. Usually it takes about 5-7 days for the delivery.
* Q4: What names are for Anti-noise?
A: Sound Barrier, Sound Proof, Noise Proof, Sound Stop, Acoustic Barrier, Sound Block, Sound Reduction, Noise control barriers, Noise enclosures, Noise Protection, etc...r, just ask!
* Q5: What other plastics using for sound barriers?
A: Yes, Polycarbonate (PC) panels also. You can ask if need it.
* Q6: What is the difference between Polycarbonate and Acrylics when using as Sound Barriers?
A: 1). Transparency: Polycarbonate: 82% & Acrylic 93%
2). Impact: Polycarbonate is much better than Acrylic
3). Weather Resistant: Acrylic performs better than Polycarbonate
4). Good look: Acrylic easier to clean and no yellowish
* Q7: What parts makes one Sound Barrier unit?
A: noise barrier panels are made of:
1). Extruded aluminium profiles
2). Transparent acrylic sheets, polycarbonate sheets
3).EPDM sealing rubber
* Q8: What do you have for reinforced sound barriers acrylic panels?

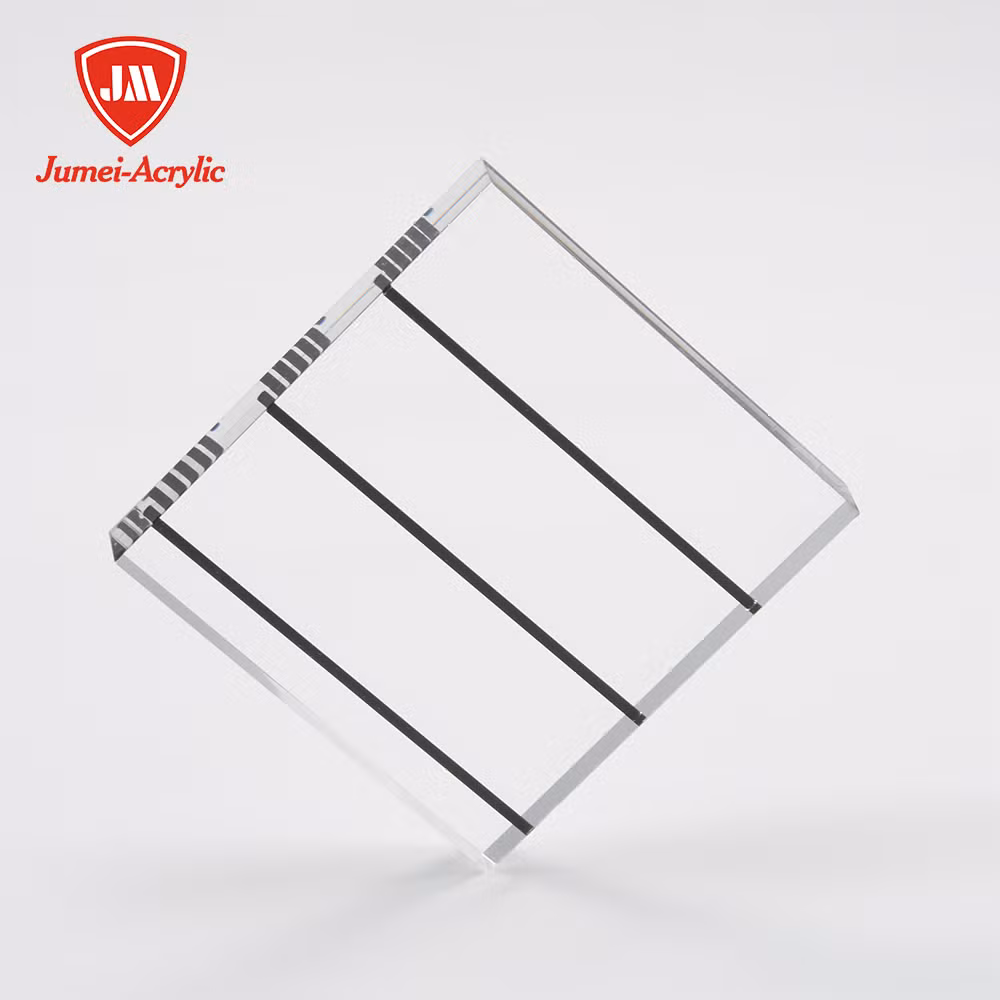

A: acrylic sheets reinforced with black or transparent polyamide fibers
* Q9: Why to choose a Sound Barriers with high transparency?
A: 6 Reasons:
1).Increase road safety
2).Long life expectancy
3).Adding extra view to landscapes.
4).No visual pollution but giving an opening for light and views.
5).Easy installation
6).Win-win solution of sound pollution and visibility.
* Q10: What is the continuous working temperature for acrylic?
A: Less than 70ºC
